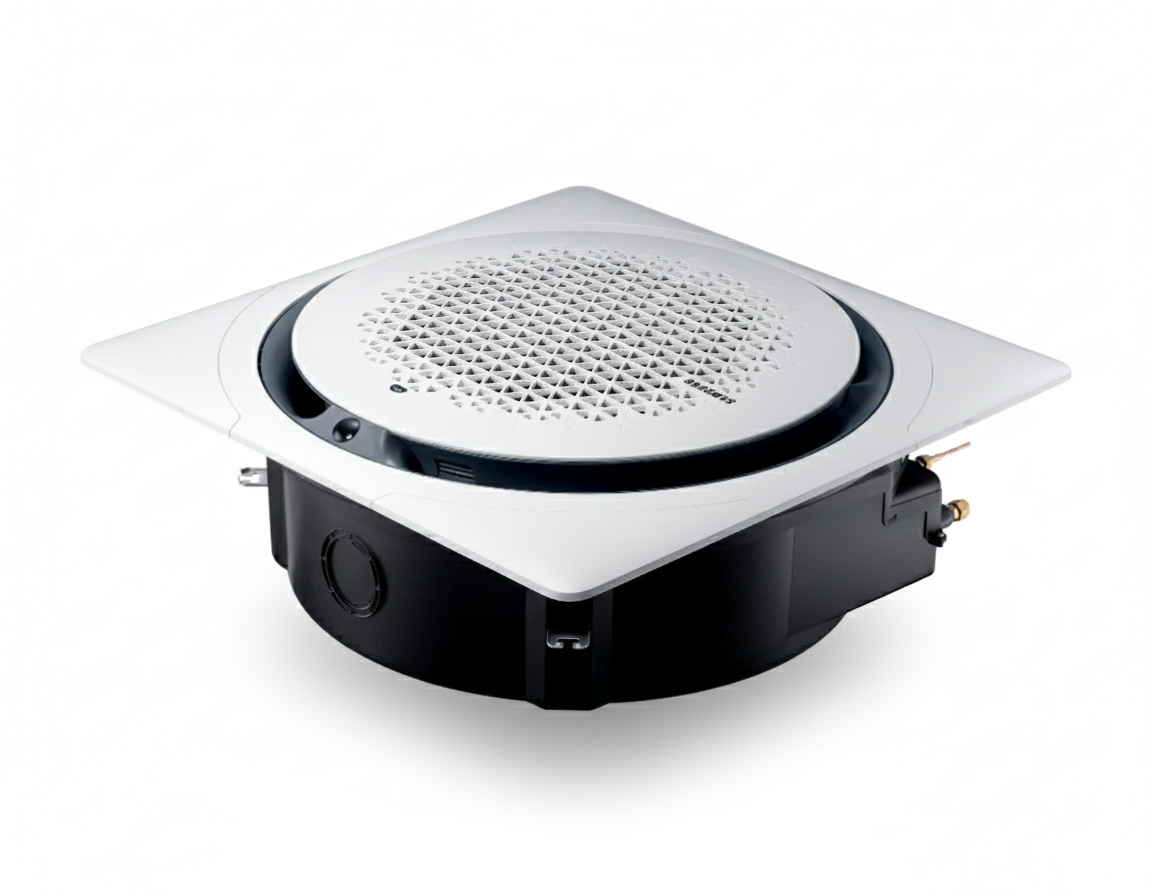

Samsung Cassette Air Conditioners Model 3
High-performance cassette air conditioners suitable for residential and commercial use.
Brand:
-
Official retailer
-
Quality guaranteed
Overview
| Parameter | Specification |
|---|---|
| Type | 360 CST |
| Mode | Heat Pump |
| Installation Max. Height | 30 m |
| Gas Pipe Diameter | 15.88 mm |
Model Information
| Component | Model Name |
|---|---|
| Indoor Unit | AC140KN4DEH/TL |
| Outdoor Unit | AC140KXADGH/TL |
Capacity
| Parameter | Value |
|---|---|
| Cooling Capacity | 13.6 kW |
| Heating Capacity | 16.0 kW |
Power Input
| Mode | Power |
|---|---|
| Cooling | 4.37 kW |
| Heating | 4.65 kW |
Current Input
| Mode | Current |
|---|---|
| Cooling | 6.8 A |
| Heating | 7.2 A |
Electrical Power
| Parameter | Value |
|---|---|
| MCA | 17.6 A |
| MFA | 17.6 A |
Energy Efficiency
| Parameter | Value |
|---|---|
| EER (Cooling) | 3.11 |
| COP (Heating) | 3.44 |
Piping Connections
| Parameter | Specification |
|---|---|
| Liquid Pipe | 9.52 mm (3/8 inch) |
| Gas Pipe | 15.88 mm (5/8 inch) |
| Max. Pipe Length | 75 m |
| Max. Height Difference | 30 m |
Field Wiring
| Parameter | Specification |
|---|---|
| Transmission Cable | VCTF 0.75 ~ 1.5 |
Refrigerant
| Parameter | Specification |
|---|---|
| Refrigerant Type | R-410A |
| Control Method | EEV |
| Factory Charge | 3.5 kg |
Power Supply
| Unit | Specification |
|---|---|
| Indoor Unit | 1Φ, 220–240 V, 50 Hz |
| Outdoor Unit | 3Φ, 380–415 V, 50 Hz |
Indoor Fan
| Parameter | Specification |
|---|---|
| Fan Type | Turbo |
| Motor Output | 97 W |
| Air Flow Rate (H/M/L) | 33 / 28 / 23 CMM |
| No. of Units | 1 |
Drain System
| Parameter | Specification |
|---|---|
| Drain Pipe Size | VP25 (OD32 / ID25) |
Sound Level (Indoor Unit)
| Mode | Sound Pressure |
|---|---|
| High | 44 dB(A) |
| Medium | 40 dB(A) |
| Low | 36 dB(A) |
Indoor Unit Dimensions & Weight
| Parameter | Value |
|---|---|
| Net Weight | 26.0 kg |
| Shipping Weight | 30.5 kg |
| Net Dimensions (W×H×D) | 947 × 365 × 947 mm |
| Shipping Dimensions | 990 × 414 × 990 mm |
Panel Details
| Parameter | Specification |
|---|---|
| Panel Model | PC4NUDMAN |
| Net Weight | 3.6 kg |
| Shipping Weight | 6.0 kg |
| Net Dimensions | 1000 × 66 × 1000 mm |
| Shipping Dimensions | 1093 × 85 × 1083 mm |
Additional Accessories
| Parameter | Specification |
|---|---|
| Drain Pump | Built-in |
| Max. Lifting Height / Displacement | 750 mm / 24 L |
Compressor
| Parameter | Specification |
|---|---|
| Type | Twin BLDC |
| Model Name | UG5T450FXAJX |
| Output | 4.01 kW |
| Oil Type | PVE |
| Oil Charge | 1,700 cc |
Outdoor Fan & Sound
| Parameter | Specification |
|---|---|
| Air Flow Rate (Cooling) | 105 m³/min |
| Sound Pressure (Cooling/Heating) | 52 / 54 dB(A) |
Outdoor Unit Dimensions & Weight
| Parameter | Value |
|---|---|
| Net Weight | 92 kg |
| Shipping Weight | 101 kg |
| Net Dimensions (W×H×D) | 940 × 1210 × 330 mm |
| Shipping Dimensions | 995 × 1388 × 426 mm |
Operating Temperature Range
| Mode | Temperature |
|---|---|
| Cooling | −15°C to 52°C |
| Heating | −20°C to 24°C |
Manufacturer Information
| Parameter | Details |
|---|---|
| Manufacturer | Samsung |
| Country of Origin | Korea |
| Imported By | Samsung India Electronics Pvt. Ltd. |
| Customer Care | 1800 40 7267864 |
| support.india@samsung.com | |
| Launch Date | July 23, 2016 |
| Weight | 80 lbs |
|---|---|
| Dimensions | 40 × 35 × 30 in |
